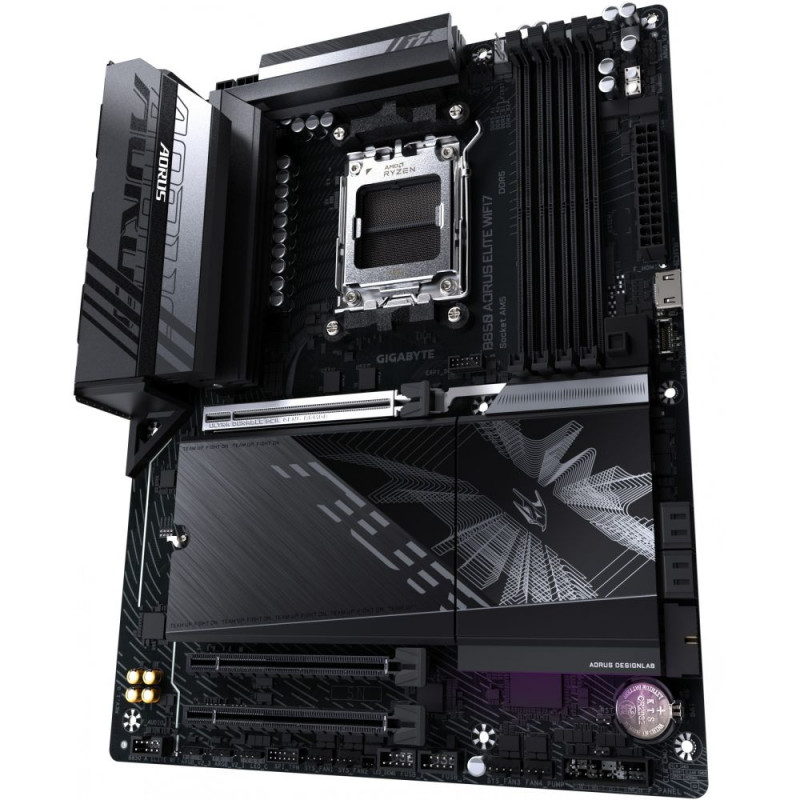

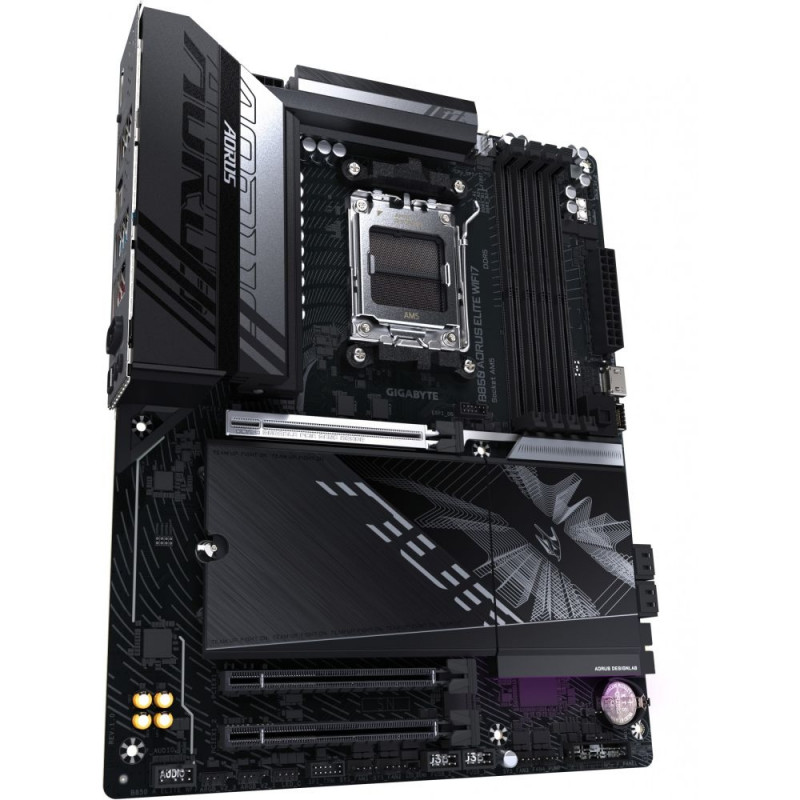

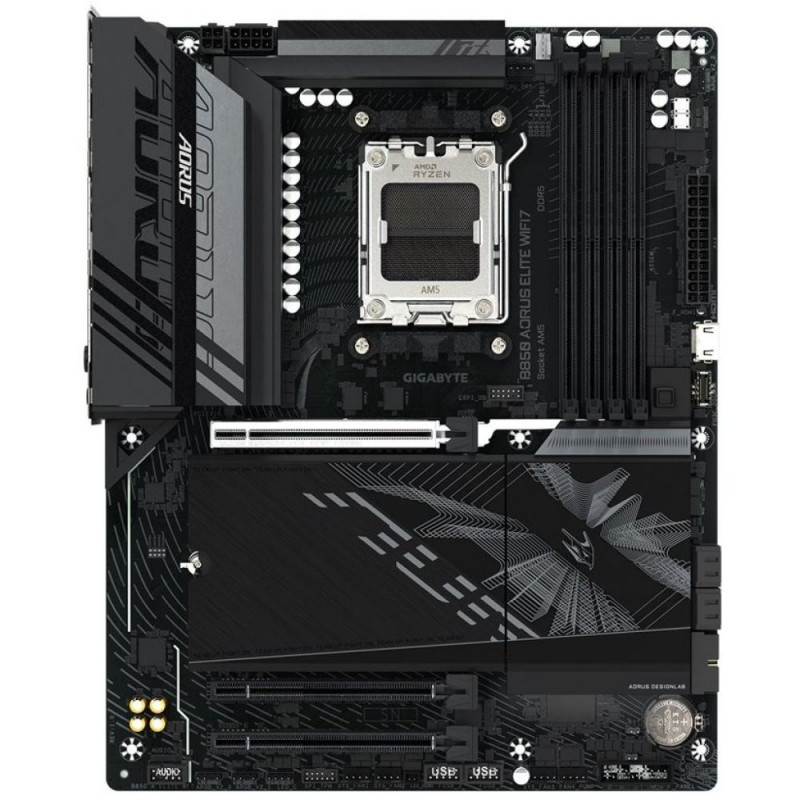

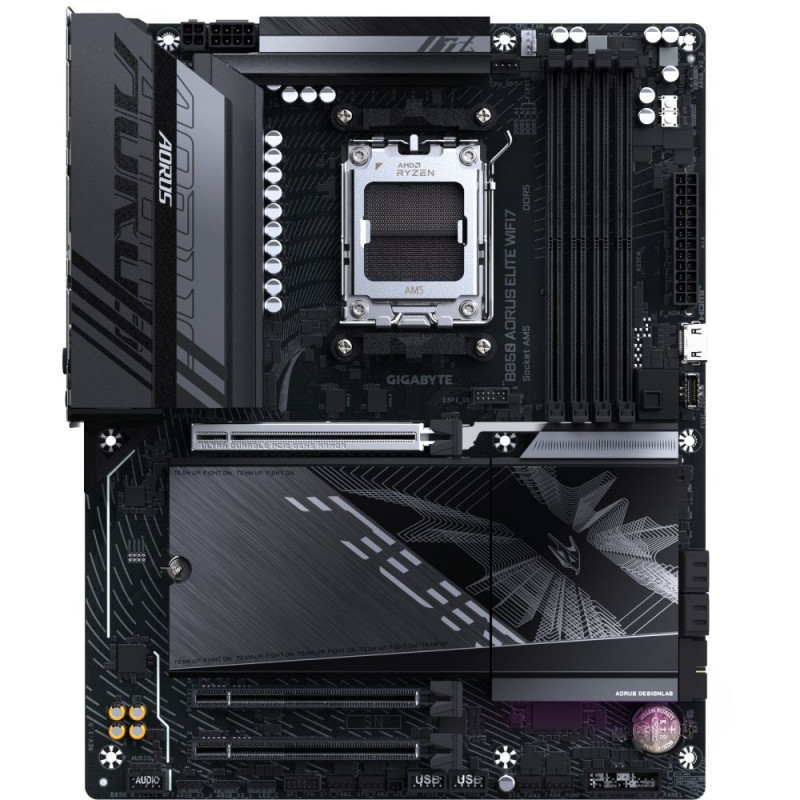

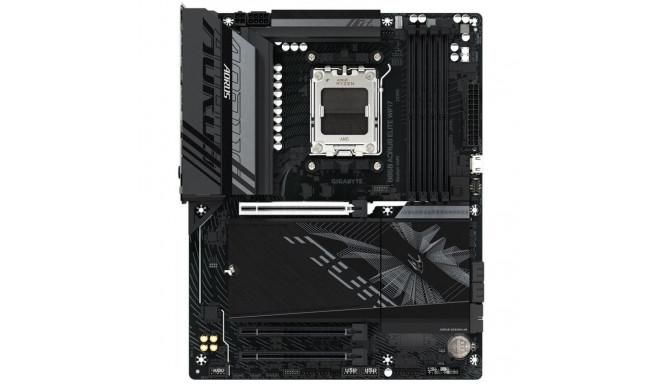

"AM5 Gigabyte B850 A ELITE WF7"
150-B850 A ELITE WF7
Main info
| Prozessorhersteller | AMD |
| Prozessorsockel | Sockel AM5 |
| Kompatible Prozessoren | AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series |
| Unterstützte Prozessorsteckplätze | Sockel AM5 |
| Unterstützte Arbeitsspeicher | DDR5-SDRAM |
| Anzahl der Speichersteckplätze | 4 |
| Arbeitsspeicher Typ | DIMM |
| Speicherkanäle | Zweikanalig |
| ECC-Kompatibilität | Nicht-ECC |
| Unterstützte Speichertaktrate (max.) | 8200 MHz |
| RAM-Speicher maximal | 256 GB |
| Eigenschaft | Schrauben enthalten |
| Maximaler interner Speicher pro Steckplatz | 64 GB |
| Unterstützte Speicherlaufwerke | HDD & SSD |
| Unterstützte Speicherlaufwerk-Schnittstellen | M.2, SATA III |
| Maximale unterstützte Anzahl der HDD | 4 |
| Anzahl der unterstützten Speicherlaufwerke | 7 |
| RAID Level | 0, 1, 10 |
| Parallele Verarbeitungstechnologie | Nicht unterstützt |
| Maximale Auflösung | 4096 x 2160 Pixel |
| DirectX-Version | 12.0 |
| Anzahl USB 2.0 Schnittstellen | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Anschlüsse | 1 |
| USB 3.2 Gen 2x2-Anschlüsse | 1 |
| SATA III Anschlüsse | 4 |
| Anzahl der CPU-Lüfteranschlüsse | 2 |
| Zahl der Chassisventilatorstecker | 3 |
| Anzahl Molex Anschlüsse 4pin | 1 |
| Anzahl der EPS-Stromanschlüsse (4--polig) | 1 |
| Serielle Port-Headers | 1 |
| Anzahl der Wasserpumpenanschlüsse | 2 |
| Anzahl der RGB-LED-Stiftleisten | 4 |
| Anzahl USB 2.0 Anschlüsse | 4 |
| USB 3.2 Gen 1 (3.1 Gen 1) Anzahl der Anschlüsse vom Typ A | 5 |
| USB 3.2 Gen 2 (3.1 Gen 2) Anzahl der Anschlüsse vom Typ A | 2 |
| USB 3.2 Gen 2 (3.1 Gen 2) Anzahl der Anschlüsse vom Typ C | 1 |
| Anzahl Ethernet-LAN-Anschlüsse (RJ-45) | 1 |
| Anzahl HDMI-Anschlüsse | 1 |
| Anzahl DisplayPort Anschlüsse | 1 |
| Kopfhörerausgänge | 1 |
| WiFi-AP-Antennenbuchse | 2 |
| Ethernet Schnittstellen Typ | 2.5 Gigabit Ethernet |
| Top WLAN-Standard | Wi-Fi 7 (802.11be) |
| WLAN-Standards | 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax), Wi-Fi 7 (802.11be) |
| WLAN-Controllermodell | Realtek RTL8922AE |
| Bluetooth-Version | 5.4 |
| Motherboard Chipsatz | AMD B850 |
| Audio-Chip | Realtek ALC897 |
| Audio Kanäle | 7.1 Kanäle |
| Produktfarbe | Schwarz, Braun |
| PC Gesundheitsüberwachung | Ventilator, Temperatur, Spannung, Water cooling |
| Komponente für | PC |
| Motherboardformfaktor | ATX |
| Motherboard Chipsatz Familie | AMD |
| Energiequelle | ATX |
| Unterstützt Windows-Betriebssysteme | Windows 10 x64, Windows 11 x64 |
| PCI Express x16-Steckplätze (Gen 4.x) | 2 |
| Anzahl der M.2 (M)-Steckplätze | 3 |
| 1. M.2 größte Schlüsselgröße | 25110 |
| 1. M.2 höchste PCI Express-Generation | 5.0 |
| 2. M.2 größte Schlüsselgröße | 22110 |
| 2. M.2 höchste PCI Express-Generation | 4.0 |
| 3. M.2 größte Schlüsselgröße | 22110 |
| 3. M.2 höchste PCI Express-Generation | 4.0 |
| BIOS-Typ | UEFI AMI |
| BIOS-Speichergröße | 256 Mbit |
| ACPI-Version | 5.0 |
| Desktop Management Interface (DMI) Version | 2.7 |
| Systemverwaltung BIOS (SMBIOS) Version | 2.7 |
| Ursprungsland | China |
| Menge pro Versandkarton | 1 Stück(e) |
| Batteriegewicht | 3 g |
| Lithiumgewicht pro Akku | 0,07 g |
| Anzahl Batteriezellen | 1 |
| Akku-/Batterietechnologie | Lithium-Manganese Dioxide (LiMnO2) |
| Akku-/Batterietyp | CR2032 |
| Verpackungsbreite | 335 mm |
| Verpackungstiefe | 270 mm |
| Verpackungshöhe | 80 mm |
| Paketgewicht | 2,46 kg |
| Mitgelieferte Software | Norton Internet Security (OEM version)LAN bandwidth management software |
| Gewicht | 2,13 kg |
| Garantiezeit | 3 Jahr(e) |
| Unterstützte Arbeitsspeichergeschwindigkeit | 4400,4800,5200,5600,5800,6000,6200,6400,6600,6800,7000,7200,7400,7600,7800,7900,7950,8000,8200 MHz |
| Gesamtanzahl der SATA-Anschlüsse | 4 |
| HDMI-Version | 1.4 |
| DisplayPorts-Version | 1.4 |
