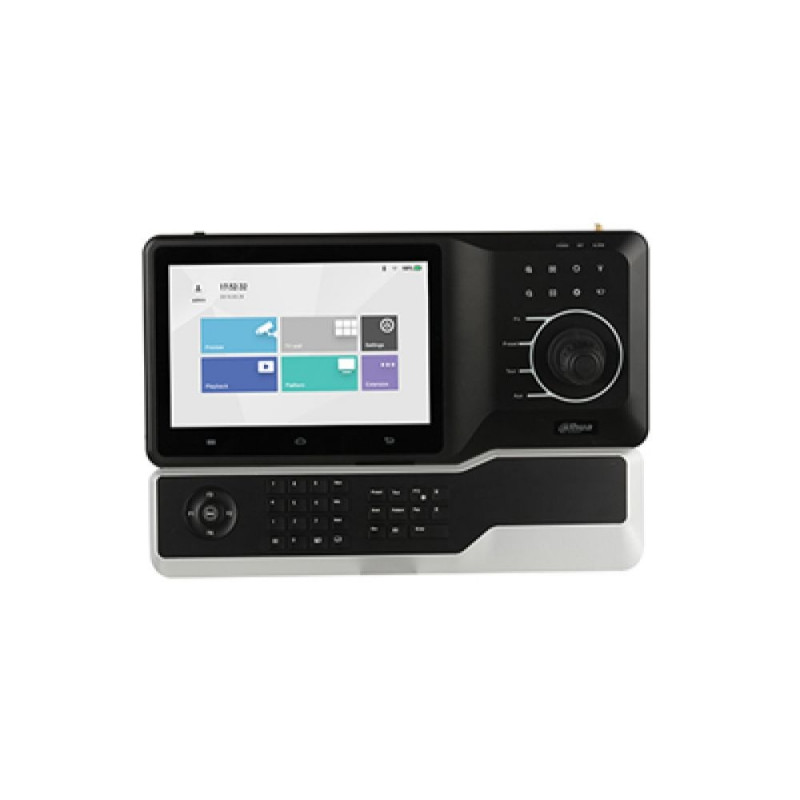

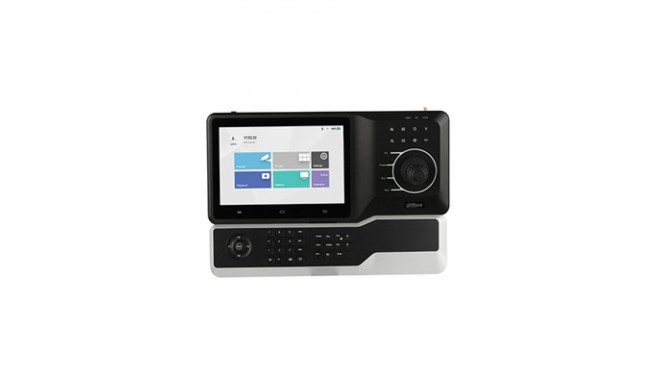

HD Network camera control keyboard, 10.1" TFT LCD, Wi-Fi, 4 HDMI, H.265, H.264, 4K
158-DASECH3
Main info
HD Network Control KeyboardWarning: Last items in stock!
HD Network camera control keyboard, 10.1" TFT LCD, Wi-Fi, 4 HDMI, H.265, H.264, 4K
Functions :
Control keyboard
- • DAHUA standalone DVR
- • DAHUA (network) high speed dome
- • DAHUA high speed dome
- • Central management platform
- • Network video server
- • RS232, RS485 and network connections (Wi-Fi)
- • Joystick control of four-dimensional PTZ functions
- • Supports 4K decoding live view
- • Supports 4CH HDMI output
- • Supports snapshot and U disk recording
- • Supports video wall display control
- • Maintain a two-way conversation
- • Preset Position, Auto Scan, Auto Pan, Auto Tour and Template
Control
- • Help functions, OSD and control manuals
- • With additional keyboard module
Technical specifications:
System
• Main processor Dual core Braswell processor
• Operating system Embedded LINUX 4.2.0
Screen
• Video output 4 × HDMI (extension decoding display)
• Stream type H.265, H.264, MPEG, non-standard
• Decoding capability 4CH@12MP(20fps)/4CH@4K(30fps)/6CH@5MP(30fps)/8CH@4MP(30fps)/10CH@3MP(30fps)/16CH@2MP(30fps)
• Stream type H.265, H.264, H264H, H264B, MJPEG, MPEG4, SVAC, SmartH.264 and non-standard
• Split Screen 1/4/9/16
Screen 10.1 inch TFT LCD touch screen (1280*800)
Sound and alarm
• Audio input/output 1 pair 3.5mm jack, support two-way talk
• 1 speaker
• Alarm 4, high-low level
• 4 alarm output (3 relays, 1 12V_1A)
• Network interface 2×RJ-45 port (10/100/1000M)), Wi-Fi
• USB interface 2 USB3.0, 2 USB2.0
• Wi-Fi support (2.4 GHz)
• RS485 for 1 ptz control
• RS232 2, debugging and recording control
• RS422 1 (reserved)
Environmental protection
• Power supply DC12V, 4A
• Power consumption 25 W (max), 18 W (standby)
• Operating temperature -10°C ~+55°C
• Operating humidity 10% ~ 95%
• Atmospheric pressure 86kpa~106kpa
• Main base dimensions: 425mm x 194mm x 59mm (L x W x H)
• Mini keyboard: 421mm x 105mm x 26mm (L x W x H)
• Weight 3.73 kg (without packaging)
Dimensions and weights
Product codes
