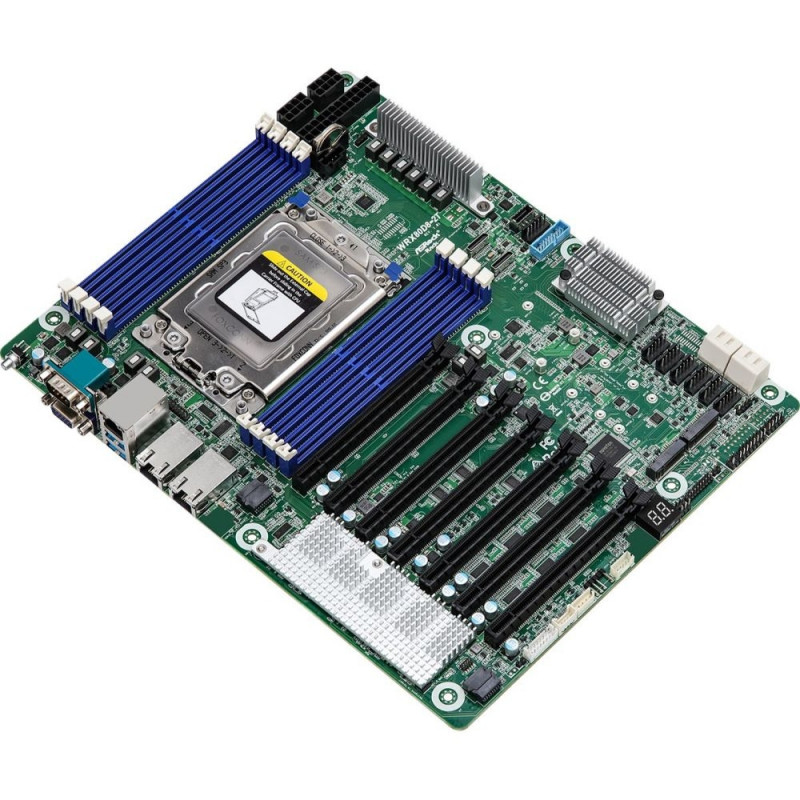

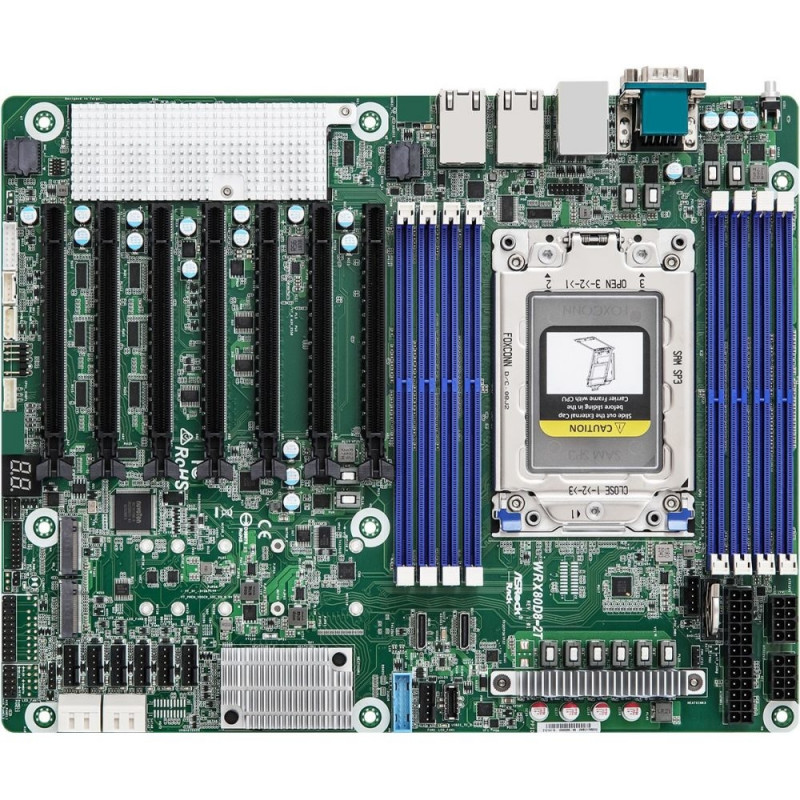

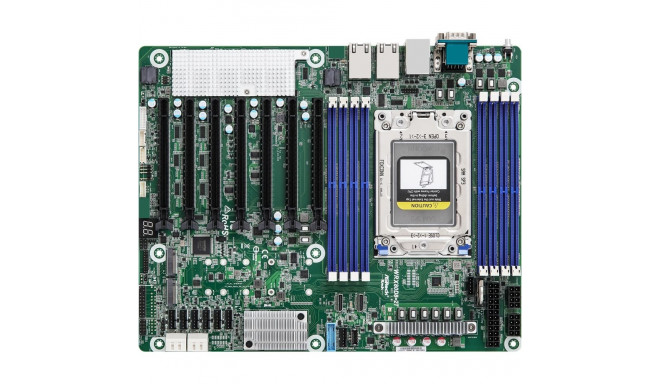

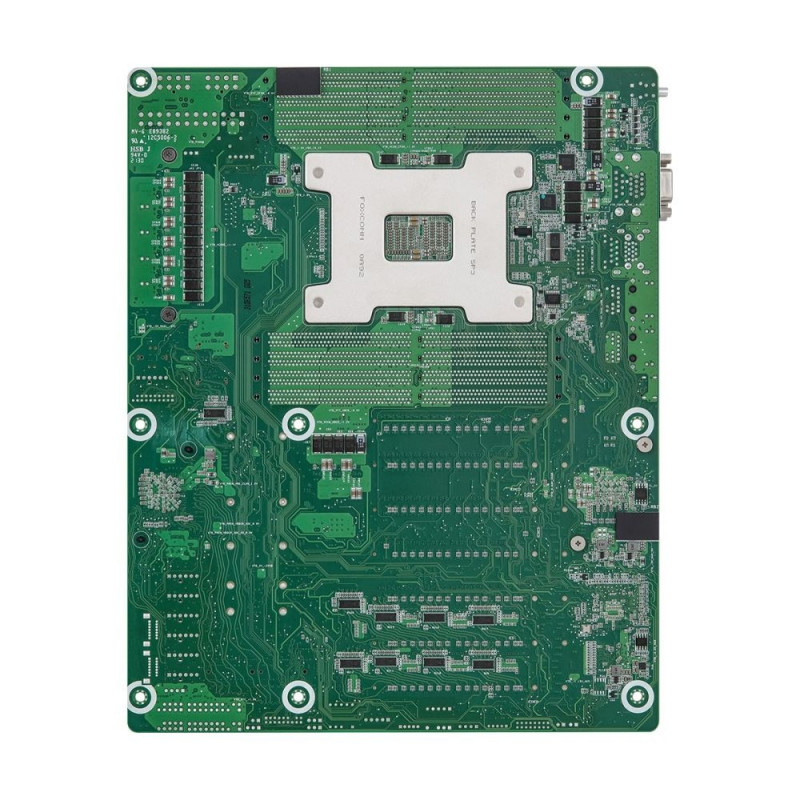

Asrock WRX80D8-2T motherboard AMD WRX80 Socket sWRX8 ATX
85-PLGASRSAM0017
Main info
Warning: Last items in stock!
| Storage temperature (T-T) | -40 - 70 °C |
| Motherboard chipset family | AMD |
| ATX Power connector (24-pin) | Yes |
| Operating temperature (T-T) | 10 - 35 °C |
| On-board graphics card memory | 512 MB |
| Supported storage drive interfaces | M.2, SATA III |
| Ethernet LAN (RJ-45) ports | 3 |
| Motherboard form factor | ATX |
| BIOS type | AMI |
| On-board graphics card model | Aspeed AST2500 |
| Operating relative humidity (H-H) | 20 - 90% |
| Number of SATA III connectors | 12 |
| Motherboard chipset | AMD WRX80 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 1 |
| LAN controller | Intel X710-AT2 |
| TPM connector | Yes |
| Maximum number of SMP processors | 1 |
| Width | 305 mm |
| Component for | Server |
| PCI Express x16 (Gen 4.x) slots | 7 |
| VGA (D-Sub) ports quantity | 1 |
| Ethernet LAN | Yes |
| Number of memory slots | 8 |
| Maximum RDIMM memory | 128 GB |
| BIOS memory size | 256 Mbit |
| System Management BIOS (SMBIOS) version | 2.8 |
| Wi-Fi | No |
| Processor socket | Socket sWRX8 |
| Serial ports quantity | 1 |
| Depth | 244 mm |
| IPMI LAN (RJ-45) port | Yes |
| ACPI version | 2.0 |
| USB 3.2 Gen 2 (3.1 Gen 2) connectors | 1 |
| Supported memory types | DDR4-SDRAM |
| Memory slots type | DIMM |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| Processor manufacturer | AMD |
| Warranty | 36 (G) |
| ECC сompatibility | ECC & Non-ECC |
| Compatible processor series | AMD Ryzen Threadripper 1000 Series |
| Memory voltage | 1.2 V |
| PC health monitoring | Voltage |
